Porsche Gear Repair Guide for Smooth Shifting Performance
Why Porsche Gear Repair Costs Less Than Dealers Want You to Think
Porsche gear repair is one of the most misunderstood service areas in the luxury car world — and one of the most expensive if you take a dealer's advice at face value.
Here is what you actually need to know upfront:
Repair Type Typical Cost Full PDK transmission replacement (dealer) $15,000 – $20,000+ PDK solenoid rebuild kit (all 8 solenoids) ~$235 Temperature sensor repair kit ~$35 Replacement Transmission Control Unit (TCU) ~$700 Remanufactured clutch assembly ~$785 OEM valve body (discounted) ~$1,700
The truth is that most PDK transmission failures are component-level problems — a faulty solenoid, a failed sensor, or degraded fluid — not catastrophic mechanical failures requiring a brand new gearbox.
The same applies to classic Porsche manual transmissions. A 2nd gear pop-out on a 996 or Boxster S? There is a targeted OEM repair kit for that. Worn shift linkage on a vintage 911 or 930? A $188 kit covers it.
Yet dealers routinely quote owners $15,000 to $20,000 for a full replacement. One Rennlist member sold his 997.2 GTS at a significant loss after being told his PDK was unrepairable — when the actual fault likely could have been resolved for a fraction of that cost.
I'm Mike Ibrahim, and in this guide I'll walk you through every major Porsche gearbox failure point, the real repair options available, and how to avoid paying dealership prices for problems that don't require dealership solutions.
Common Failure Points in Porsche PDK and Manual Transmissions
Whether you are driving an air-cooled 911, a 997 Carrera, or a modern 981 Cayman, Porsche gearboxes are masterpieces of mechanical engineering. However, no gearbox is immune to wear, electrical faults, or mechanical degradation. When transmission issues arise, understanding the precise root cause is the key to executing an effective Porsche gear repair without burning a hole in your wallet.
In Porsche Dual-Clutch (PDK — Doppelkupplung) transmissions, failure points typically break down into electrohydraulic, sensor, or clutch-related issues:
Hydraulic Valve Body Solenoid Failure: The valve body regulates fluid pressure across gear actuators and dual clutches. Individual pressure control (EDS) or magnet valves (MV) can fail or accumulate metallic debris, causing erratic shifts, harsh gear engagement, or lockouts.
Distance / Position Sensor Failure: The distance sensor monitors the position of four shift rods inside the mechanical housing. Fault codes P1731 through P1734 indicate a position sensor failure. Porsche deems this internal sensor non-serviceable, but component-level repairs are readily achievable.
Temperature Sensor Wiring Faults: A faulty temperature sensor circuit triggers diagnostic trouble codes P0711 or P172D, placing the car in "Emergency Gearbox Operation" limp mode. The sensor wire bundle located above the valve body can suffer short circuits due to thermal expansion and fluid exposure.
Clutch Pack Wear & Slippage: Driven hard or on track, dual-clutch packs naturally wear down, resulting in gear slippage under load or delayed power delivery.
Fluid Intermix (Cross-Contamination): PDK transmissions contain two isolated oil chambers (hydraulic fluid and gear oil). Damaged internal seals or improper servicing can cause fluid intermix, destroying clutch friction materials and contaminating sensors.
Manual 2nd Gear Pop-Out: On G96 (996 911) and G86 (986 Boxster S) 6-speed manual transaxles, worn 2nd gear dog rings and synchronizers cause the gear lever to violently pop out into neutral under acceleration or downshifting.
Architectural Differences: 997/987 vs. 991/981 Transmissions
Understanding the architecture of your specific gearbox generation is essential when planning a repair. Manufactured by ZF, the Porsche PDK operates as an automated manual transmission split into two isolated chambers: a hydraulic clutch chamber running Porsche PDK fluid and a mechanical gearset chamber running standard gear oil.
The first-generation PDK (ZF 7DT45 used in 997.2 and 987.2 models from 2009–2012) established this dual-chamber design. The logic control does not live inside the transmission housing; all intelligence resides in an external Transmission Control Unit (TCU) located inside the vehicle interior (which costs approximately $700 to replace).
In second-generation PDK units (ZF 7DT70 used in 991, 981, 718, and later models), ZF refined hydraulic routing, clutch plate material, and sensor harness placement. While accessibility to certain internal components improved slightly, dealer service protocols remained identical: replace the whole unit for any internal sensor fault. Fortunately, specialized independent shops can perform component-level servicing across both generation architecture styles.
Common Manual Transmission Mechanics and Pop-Out Defects
Porsche's manual transmissions are equally legendary, but they suffer from specific mechanical failure modes. The G96 transaxle (found in 1999–2005 Porsche 996 C2/C4) and G86 transaxle (2000–2004 Boxster S 6-speed) are notorious for 2nd gear pop-out and 3rd-to-2nd gear downshift grinding.
This flaw stems from wear on the 2nd gear dog ring teeth, synchro rings, and operating sleeves. Over time, rounded engagement teeth fail to hold mechanical torque under load, pushing the shift sleeve off the gear. Rather than replacing the entire transaxle assembly, installing targeted gear repair components or dog ring kits completely eliminates this defect.
Component-Level Porsche Gear Repair vs. Replacement Options
When faced with gearbox trouble, Porsche dealerships present a binary choice: pay $15,000 to $20,000+ for a complete brand-new or factory-remanufactured transmission assembly, or leave with an broken car. However, looking at individual component economics reveals an entirely different picture for Porsche Transmission Rebuild services.
PDK Component / Repair Service Dealership Approach Component-Level Repair Faulty Solenoid Complete Gearbox ($15,000–$20,000) Solenoid Rebuild Kit (~$235) or Solenoids ($40–$150/ea) Temp Sensor Code (P0711) Complete Gearbox ($15,000–$20,000) Wiring Repair Kit (PN 997.612.930.01) (~$35) Distance Sensor Failure (P1731) Complete Gearbox ($15,000–$20,000) Upgraded Aftermarket Distance Sensor (~$1,200–$1,800 part) Damaged Valve Body Complete Gearbox ($15,000–$20,000) OEM Valve Body (~$1,700–$2,800) or Used (~$500) Internal Gearstack Bearing Failure Complete Gearbox ($15,000–$20,000) Replacement Precision Bearing Sets Worn Clutch Pack Complete Gearbox ($15,000–$20,000) Remanufactured Clutch Assembly (~$785)
By opting for targeted component repairs, Porsche owners routinely save 70% to 90% compared to franchised dealer estimates while enjoying equal or superior long-term reliability.
Solenoid and Valve Body Servicing Without Gearbox Removal
One of the most accessible Porsche gear repair procedures involves servicing the electrohydraulic valve body. If your PDK exhibits rough gear shifts, delayed engagement, or isolated solenoid fault codes, the valve body can be accessed directly by removing the transmission oil pan—no engine or gearbox drop required.
The PDK valve body utilizes two primary solenoid types:
EDS Solenoids (Pressure Control): Variable pressure solenoids controlling clutch pack pressure (0 to 4.7 bar) and gear actuator stroke.
MV Solenoids (Magnet Valves): On/off directional valves that route fluid to specific gear shift cylinders.
Before replacing parts, technicians can conduct electrical resistance testing directly at the TCU harness connector in the interior or at the main transmission plug. Individual solenoids cost between $40 and $150 each, while an 8-solenoid rebuild kit costs roughly $235. Installing a fresh solenoid kit combined with a filter change and PIWIS diagnostic calibration restores buttery-smooth gear changing. For broader guidance on preventing electronic and mechanical wear, read our guide on The Most Common Problems With German Cars and How to Prevent Them.
Addressing Sensor Faults During Porsche Gear Repair
Two internal sensor types generate the vast majority of PDK dashboard warnings:
Temperature Sensors (Fault Codes P0711 / P172D): A failed clutch fluid temperature sensor falsely signals extreme overheating, forcing emergency operation. The fix often requires installing Porsche repair kit PN 997.612.930.01 ($35) or re-soldering compromised wiring directly above the valve body using high-temperature solder and chemical-resistant shrink tubing.
Distance / Position Sensors (Fault Codes P1731, P1732, P1733, P1734): Distance sensors monitor magnetic markers attached to internal shift rods. When the OEM sensor fails, gear engagement halts completely.
Replacing an internal distance sensor requires separating the rear PDK end housing. Using a specialized dual shaft puller tool, technicians push against the driveshaft and mainshaft simultaneously to pull the rear case off without damaging internal gearstacks.
Once opened, the failure-prone factory sensor can be replaced with an upgraded aftermarket unit (such as a T-Design sensor or upgraded logic sensor set). These aftermarket solutions utilize robust solid-state electronics designed to endure extreme thermal cycling and oil submersion far better than the original components.
Manual Transaxle Diagnostics and Gearbox Hardware Fixes
For owners of manual 911, Cayman, and Boxster models, gear repair relies on sound mechanical diagnostics, precision tolerances, and specialized hardware kits.
When servicing all-wheel-drive 997 models (2006–2012 911 Carrera 4), fluid leaks near the front drive output stem from worn flange snap rings and degraded seals within the G97.31 or G97.35 gearbox. Utilizing an OEM output flange repair kit—such as the TEILE.COM | C4 Gearbox output flange repair kit, G97.31 / 35 / new / 911 997 / 302-05 Gear housing, snap rings, washers / 99730191105 —provides fresh snap rings, aluminum seal rings, and washers to resolve output shaft play and fluid loss permanently.
Manual Transaxle Porsche Gear Repair Solutions
When second gear begins grinding or popping out on mid-engine Porsche models, sourcing individual replacement gear wheels from Porsche can be impossible because factory catalogs often list complete transaxles only.
For 987 Cayman and Boxster 6-speed models (transaxle codes G87.10, G87.20, G87.21, G87.40), specialized engineering solutions solve this shortage. Shops like California Motorsports Inc offer precision 2nd gear dog ring re-machining. The damaged dog teeth are precision-machined off the original 2nd gear shaft, and a brand-new hardened steel dog ring is welded into place, fully restoring clean, crisp shift engagement at a fraction of gearbox replacement cost.
Similarly, 996 and 986 Boxster S owners suffering from 2nd gear pop-out can install dedicated aftermarket kits like the PORSCHE 996 & BOXSTER S 2ND GEAR REPAIR KIT – California Motorsports Inc , which contains redesigned operating sleeves, synchro rings, and modified gear teeth to fix the root design flaw forever.

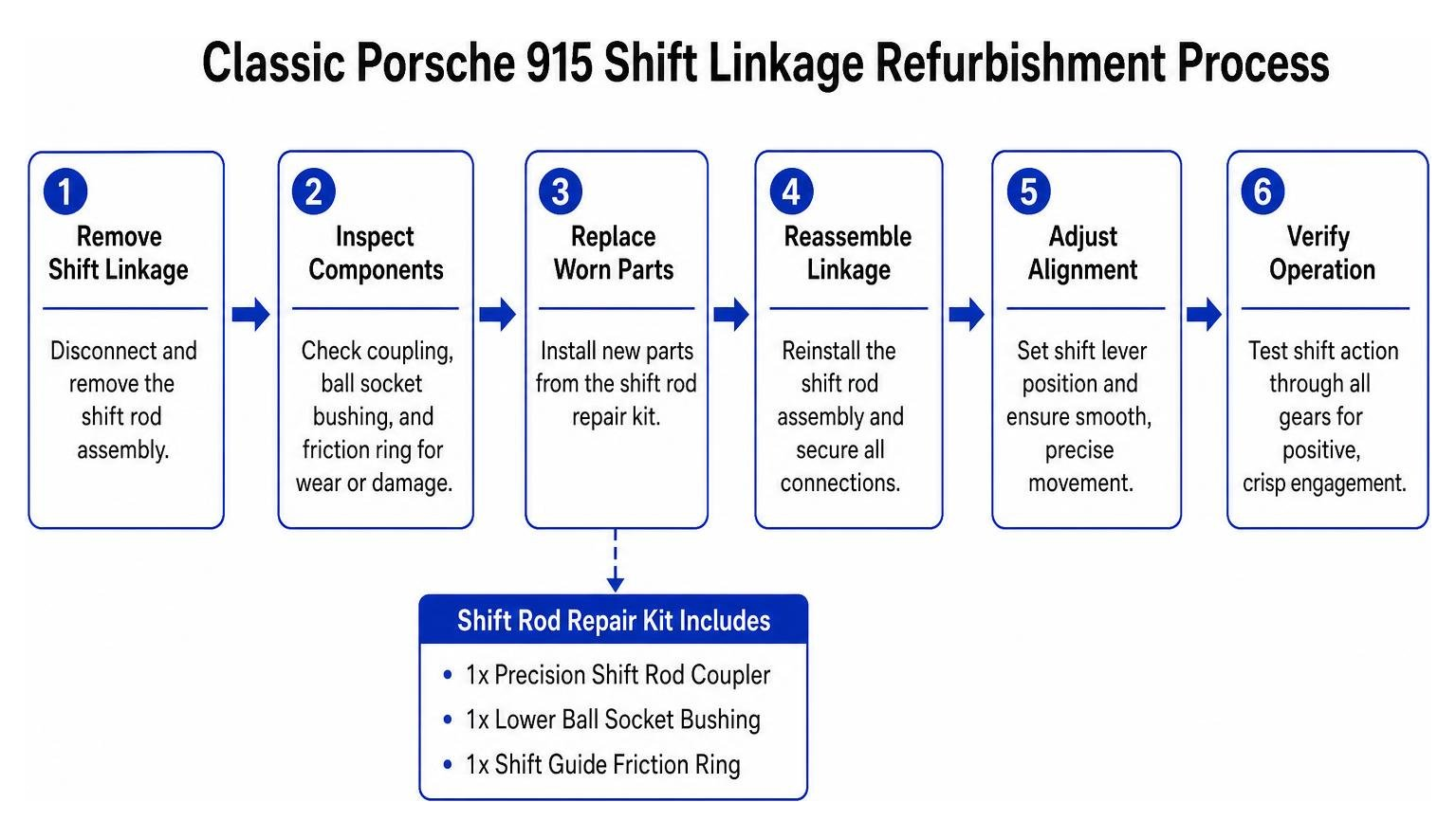

Classic Porsche 911 and 930 Shift Linkage Restorations
Vague, sloppy, or misaligned gear lever feel in classic Porsche 911s (1969–1986) and 930 Turbos (1975–1988) equipped with the iconic 915 transmission is rarely caused by internal gear failure. Instead, hardened, broken plastic shift linkage bushings are almost always to blame.
Installing a genuine factory shift rod repair kit like PCG-424-020-00 Shift Rod Repair Kit, Includes Coupler, Ball Socket and Set Screws ($188.60) completely transforms classic gearshift action. The kit includes:
1x Precision Shift Rod Coupler
1x Lower Ball Socket Bushing
1x Shift Guide Friction Ring
2x Conical Set Screws
Replacing these wear items restores tight, gate-accurate shifting without needing to pull the transmission.
Classic Porsche Odometer Instrument Gear Repairs
While not inside the transmission casing, physical gear failure frequently strikes classic Porsche dashboards. In 1984–1989 Porsche 911 Carrera 3.2 models, the mechanical odometer stops advancing due to disintegrated internal plastic drive gears.
Rather than sending the unit away for costly instrument overhauls, owners can restore functionality using dedicated gear repair sets like the How to repair Porsche 911 Carrera 3.2 km/h instrument clusters odometer with Minitools replacement gears . The repair involves disassembling the speedometer gauge and replacing tiny stripped gears (common tooth counts include 20/23, 47/44, 16, and 35 teeth) while using protective discs to guard delicate gauge faces.
Preventative Maintenance and Protection Strategies for Porsche Transmissions
The absolute best way to avoid expensive Porsche gear repair is adherence to proactive preventative maintenance. Factory service manuals frequently cite conservative 60,000 to 90,000-mile fluid service intervals, but automotive gear specialists strongly advise cutting this interval down significantly.
Key preventative strategies include:
Strict 30,000-Mile Fluid Flushes: Changing PDK hydraulic fluid and mechanical gear oil every 30,000 miles extracts micro-abrasive metallic particles before they settle on magnetic distance sensors or clog tiny valve body solenoid passages. Discover more interval specifics in our Porsche Service Schedule.
Anti-Rotation Locks for Clutch Cover: Dual-mass flywheel degradation causes harmonic vibration that can loosen or rotate the front clutch cover, destroying main front seals. Installing aftermarket anti-rotation locks during clutch or sensor repairs prevents catastrophic bellhousing oil leaks.
Early Flywheel Shudder Diagnosis: Catching subtle shuddering during off-the-line acceleration or faint clunking when shifting from Park to Drive alerts you to dual-mass flywheel fatigue before it damages internal transmission shaft bearings.
Axle Shaft Seal Inspections: Inspect drive axle seals during routine oil changes. A compromised axle seal allows gear oil to leak or cross-contaminate into the PDK hydraulic chamber. For dedicated assistance, visit our specialized Porsche Repair Center.
Managing Clutch Pack Failures and Fluid Cross-Contamination
When PDK clutch packs slip under load, aggressive driving wear or fluid intermix is usually responsible. Because PDK clutch fluid and gear oil perform radically different lubricative functions, intermix damages clutch friction linings quickly.
Fluid intermix occurs primarily through two failure paths:
Internal Axle Shaft Seal Damage: Occurs during careless axle shaft removal or installation.
Improper Fluid Filling during Service: Mechanics unfamiliar with PDK architecture mistakenly pumping gear oil into the hydraulic fill port (or vice versa).
If clutch slippage occurs without fluid contamination, installing a remanufactured dual-clutch assembly (~$785) alongside new internal gearstack bearings restores full engine torque transfer capability. For trusted local mechanics, consult our comprehensive Porsche Service Center Complete Guide.
Frequently Asked Questions About Porsche Transmission Repairs
Can a Porsche PDK transmission be repaired instead of replaced?
Yes, absolutely. Despite official dealership policies asserting that PDK units are non-serviceable sealed assemblies requiring full $15,000 to $20,000+ replacement, almost every common PDK fault can be repaired independently. Solenoids, valve bodies, wiring harnesses, temperature sensors, distance/position sensors, clutch packs, and internal bearings can all be swapped or rebuilt individually at a fraction of dealer replacement costs.
What causes 2nd gear pop-out on Porsche manual gearboxes?
Second gear pop-out on G96 (996) and G86 (Boxster S) manual transmissions is caused by physical wear on the 2nd gear dog teeth, operating shift sleeve, and synchronizer rings. Under acceleration or deceleration, worn, rounded engagement teeth can no longer interlock securely, violently throwing the gear lever into neutral. Installing an upgraded 2nd gear repair kit or custom remachined dog ring fixes this permanently.
What diagnostic codes indicate a fixable PDK sensor issue?
Common fixable PDK sensor codes include:
P0711 / P172D: Clutch fluid temperature sensor circuit range/performance fault (fixable via a $35 wiring repair kit or resoldering).
P1731, P1732, P1733, P1734: Shift rod distance/position sensor faults 1 through 4 (fixable by splitting the transmission end case and installing an upgraded aftermarket distance sensor).
Conclusion
A transmission warning light or harsh gear engagement in your Porsche does not mean you have to hand over $20,000 for a total replacement. By understanding the modular design of PDK and manual gearboxes, Porsche owners can take advantage of component-level repairs—replacing $35 sensor wires, $235 solenoid kits, or target manual gear kits—to restore factory-fresh shifting performance safely and economically.
