The Complete Guide to C230 Kompressor Tuning and ECU Remaps
Crucial Pre-Tuning Maintenance and Common W203 Issues
Before you begin pushing extra boost through your supercharger, you must establish a reliable mechanical baseline. Tuning an engine with underlying vacuum leaks, old sensors, or worn spark plugs will only amplify existing problems and risk engine knock under heavy load. Following a comprehensive Mercedes Service Schedule ensures your car can handle increased stress without reliability failures.
Maintenance Baseline Before Modifying
Before applying any c230 kompressor tuning upgrades, verify the physical health of your powertrain across both M111 (2.3L) and M271 (1.8L) variants:
Supercharger Oil & Bearings: The Eaton superchargers used on M111 and M271 engines require routine oil maintenance every 50,000 to 75,000 miles. Fresh synthetic supercharger oil prevents internal snout bearing failure and gear wear under higher rotational speeds.
Intake Hoses & Vacuum Leaks: Elevated boost will quickly expose brittle PCV hoses, cracked intercooler piping, or failing recirculating air valves. Inspect the crankcase breather hoses under the intake manifold, which are prone to splitting.
Timing Chain Inspection: The 1.8L M271 engine is particularly notorious for timing chain stretch and worn camshaft adjuster gears. Inspect timing chain play and tensioners before raising power output.
Spark Plug Selection: When increasing boost pressure, inspect spark plug wear patterns. Switching to copper or iridium plugs that are one heat range colder helps dissipate excess cylinder heat and prevents pre-ignition during high-boost pulls.
Consulting with an Independent Mercedes Repair specialist allows you to catch these latent mechanical issues before tuning. For additional context on owner experiences with hardware maintenance, review community insights on C230 Kompressor Pulleys and tuning options.
Fixing Common Non-Tuning W203 Faults
Address these frequent non-engine annoyances to ensure a hassle-free overall ownership experience:
Sunroof Resync: If your sunroof stops opening automatically or loses memory after a battery disconnection, hold the switch in the tilt position for 5 seconds until it normalizes.
Cigarette Lighter (Fuse 23): If your 12V power outlet stops working, inspect Fuse 23 located inside the main engine bay fuse box.
Washer Bottle Leak: A common reservoir grommet leak can drain washer fluid onto delicate wiring harness connectors below. Replacing the rubber grommet restores proper sealing.
Essential Methods for C230 Kompressor Tuning

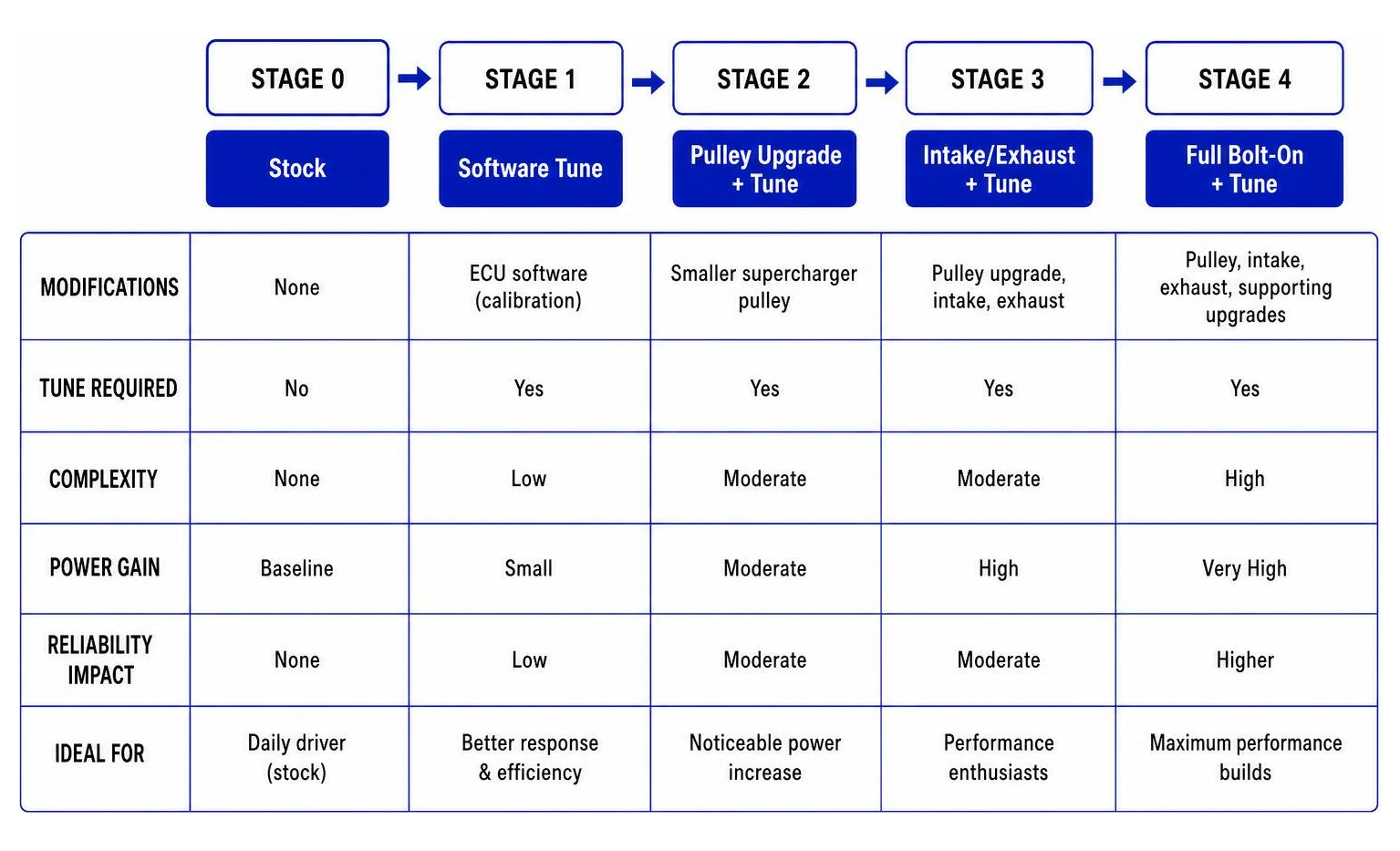

Tuning options depend largely on whether your vehicle houses the older 2.3L M111 engine (found in 2002 models) or the later 1.8L M271 engine (2003–2005 models). Broadly speaking, Mercedes Tuning involves two main paths: mechanical modifications to increase forced air volume and software calibrations to optimize ignition timing, fueling, and electronic bypass valve control.
Mechanical Upgrades in C230 Kompressor Tuning
To make significant power gains beyond simple ECU software tweaks, you must physically increase supercharger drive speeds relative to engine RPM:
Crankshaft Pulley Upgrades: An enlarged crankshaft pulley overdrives the supercharger, stepping up boost output across the entire rev range. For example, moving from a stock 185mm crank pulley up to a 218mm unit on the M111 engine significantly boosts intake charge pressure from stock ~7 PSI up to 11–12 PSI.
Supercharger Pulley Reductions: Swapping to a smaller supercharger snout pulley (e.g., dropping from 94mm to 87mm) yields similar overdrive benefits without altering the main belt line geometry as drastically.
High-Flow Exhaust Headers: Supercharged engines generate significant exhaust backpressure. Installing tubular high-flow headers relieves exhaust restrictions, reduces backpressure against the supercharger, and lowers combustion chamber temperatures.
To explore technical mappacks, hardware specifications, and mathematical formulas for Eaton supercharger drive ratios, examine the open-source repository daniruiz/230kompressor.
Software Options for C230 Kompressor Tuning
Increasing air volume with mechanical upgrades requires recalibrating software parameters. An optimized tune adjusts fuel pulse widths to match added boost, advances spark timing for higher-octane fuel, and recalibrates the electronic supercharger bypass valve to prevent boost dumping at high RPMs. To read more about foundational engine modifications, check out The Top 5 Performance Upgrades for Your German Car.
ECU Flash Remapping vs. OBD2 Plug-and-Play Tuners
Choosing how to rewrite software calibrations depends on your budget, technical comfort, and access to local specialists. If you are searching for local flashing services, consider locating expert ECM Tuners Near Me.
ECU Flash Remap Alone vs. Combined Pulley Package
A standalone software remap optimizes ignition timing and fuel delivery on stock boost, typically yielding an estimated +15 to +25 bhp for around £300 ($400).
However, combining an ECU remap with an overdriven supercharger pulley kit dramatically alters performance gains, delivering a total jump of +40 to +50 bhp for around £900 ($1,200). For official technical data sheets and performance benchmarks on 2.3L ECU upgrades, view MPM Sportcars - Mercedes C 230 Kompressor 2.3l up1 C-Klasse W203.
OBD2 Tuners vs. Direct ECU Flashing
Owners often compare plug-and-play OBD2 tuning modules with professional direct ECU remapping:
Plug-and-Play OBD2 Tuners: Devices such as the Monte GT ($279) or GTR ($399) connect to the under-dash port, modifying sensor signals sent to the factory control unit. While easy to install and fully reversible, piggyback modules cannot alter deeply embedded torque limiters or internal boost tables.
Direct ECU Bench Flashing: Remapping a W203 ECU generally requires bench flashing. The tuner physically removes the ECU module, carefully opens the metal housing, flashes revised binary maps onto the circuit board, and seals the lid with RTV silicone gasket maker to prevent moisture entry.
For older Bosch ME2.1 units, bench remapping allows tuners to remove internal MAF output limiters and raise secondary RPM limits (such as the 5500 RPM cap triggered when ABS systems are disconnected). Detailed software discussions regarding map definition files can be reviewed at Mappack and tune for 230 kompressor (PRE) Bosch ME2.1 | Mercedes-Benz Forum.
Pulley Kits, Supporting Mods, and Water Injection Safety
When adjusting mechanical supercharger drive ratios, managing heat soak becomes a major priority. Roots-type superchargers naturally generate heat when compressed beyond stock boost levels. If you own a related supercharged model, review our comprehensive CLK 200 Kompressor Tuning guide for additional forced-induction tips.
Pulley Kit Availability and Market Changes
Major tuners like Kleemann and Renntech largely discontinued off-the-shelf pulley kits for the M271 and M111 platforms as production costs outpaced market demand for aging W203 models. However, specialized tuning vendors still produce lightweight aircraft-grade aluminum pulleys ($799), and custom pulley machining remains a popular route among dedicated enthusiasts.

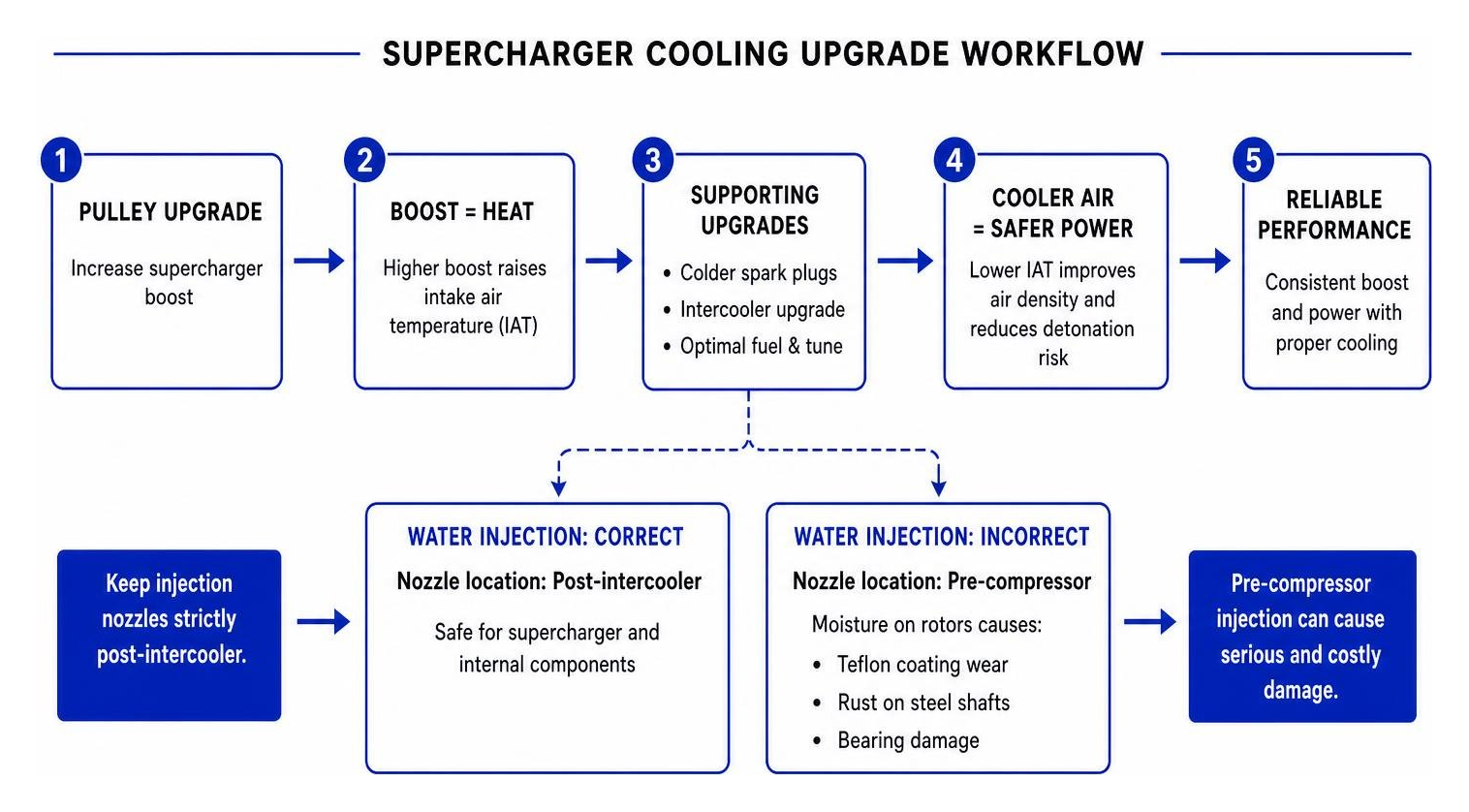

Supporting Upgrades and Water Injection Risks
Increasing supercharger boost levels elevates intake air temperatures (IATs), which lowers air density and increases detonation risks. Supporting modifications are required to safely sustain higher power levels:
Colder Spark Plugs: Installing spark plugs one heat range colder helps draw heat away from the combustion chamber, preventing pre-ignition during hard acceleration.
Intercooler Upgrades: Fitting an upgraded front-mount intercooler or a larger heat exchanger reduces high intake temperatures, retaining air density during sustained high-speed driving.
Water Injection Risks: Caution is necessary regarding water-methanol injection. Installing nozzles pre-compressor (before the supercharger inlet) introduces liquid droplets directly onto internal rotors spinning at up to 14,000+ RPM. Over time, water mist strips Teflon rotor coatings, rusts steel rotor shafts, and degrades internal bearings. Keep injection nozzles strictly post-intercooler to safeguard internal supercharger components.
For additional ideas on general maintenance and handling modifications, explore Mercedes C230 Kompressor: Mods, Upgrades, And Tips.
Cost vs. Value: Tuning a C230K vs. Buying a C32 AMG
Before spending heavily on custom engine builds, evaluate financial return versus performance outcomes.
Adding custom headers, pulley kits, intercoolers, and bench flashes to a C230K can quickly tally $1,500 to $3,000 in parts and labor to reach roughly 220 to 240 horsepower.
In contrast, selling the C230K and upgrading to a factory C32 AMG provides 349 horsepower, robust V6 internals, upgraded AMG brakes, and factory suspension tuning straight out of the box. For a comparison with other entry-level chassis options, read our C180 Kompressor Tuning Guide 2026. Technical discussions regarding engine structural retrofits can also be found at C230 auf Kompressor umrüsten oder anders Leistung steigern?! - Motor und Antrieb - C-Klasse-Forum.
Frequently Asked Questions
How much HP can you gain from a C230 Kompressor tune?
A standalone ECU software remap typically adds +15 to +25 horsepower. Combining an ECU remapping package with an overdriven supercharger pulley swap yields overall gains of +40 to +50 horsepower and up to +35 lb-ft of torque.
Is ECU bench flashing required for W203 C230 models?
Yes, for complete custom tuning on most W203 control units, the ECU must be removed from the engine compartment, bench flashed directly on the circuit board, and resealed using fresh silicone sealant to prevent water intrusion.
Can you tune a naturally aspirated C230 with a supercharger kit?
Retrofitting a factory supercharger onto a naturally aspirated C230 engine is economically unfeasible. Factory Kompressor engine blocks (such as the M111.975) feature unique structural reinforcements, sodium-cooled exhaust valves, copper-nickel alloy pistons, and dedicated piston oil spray nozzles that naturally aspirated blocks lack.
Conclusion
Executing c230 kompressor tuning correctly turns a modest Mercedes sedan into an exceptionally responsive performance car. By completing vital baseline maintenance, pairing supercharger pulley ratio changes with custom ECU software adjustments, and maintaining effective intake charge cooling, you can extract reliable extra horsepower without compromising vehicle durability.
